RightMark Audio Analyzer test report

Testing device [ASIO] MOTU Pro Audio v2
Sampling mode 32-bit, 44 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.8 dB / -0.8 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.04, -0.08
Excellent
Noise level, dB (A)
-120.6
Excellent
Dynamic range, dB (A)
120.3
Excellent
THD, %
0.00011
Excellent
THD + Noise, dB (A)
-108.8
Excellent
IMD + Noise, %
0.00045
Excellent
Stereo crosstalk, dB
-119.3
Excellent
IMD at 10 kHz, %
0.00048
Excellent
General performance

Excellent



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.15, +0.03
-0.15, +0.04
From 40 Hz to 15 kHz, dB
-0.09, +0.03
-0.08, +0.04

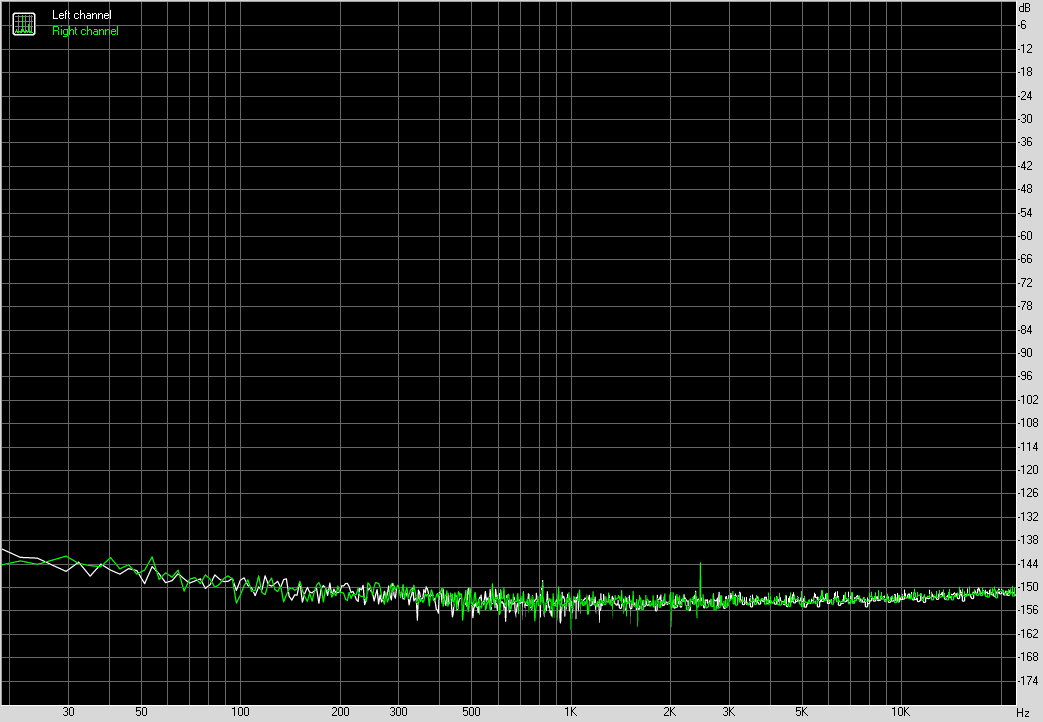

Noise level

Spectrum graph


Left
Right
RMS power, dB
-119.2
-119.1
RMS power (A-weighted), dB
-120.6
-120.5
Peak level, dB FS
-92.2
-92.2
DC offset, %
+0.0
+0.0

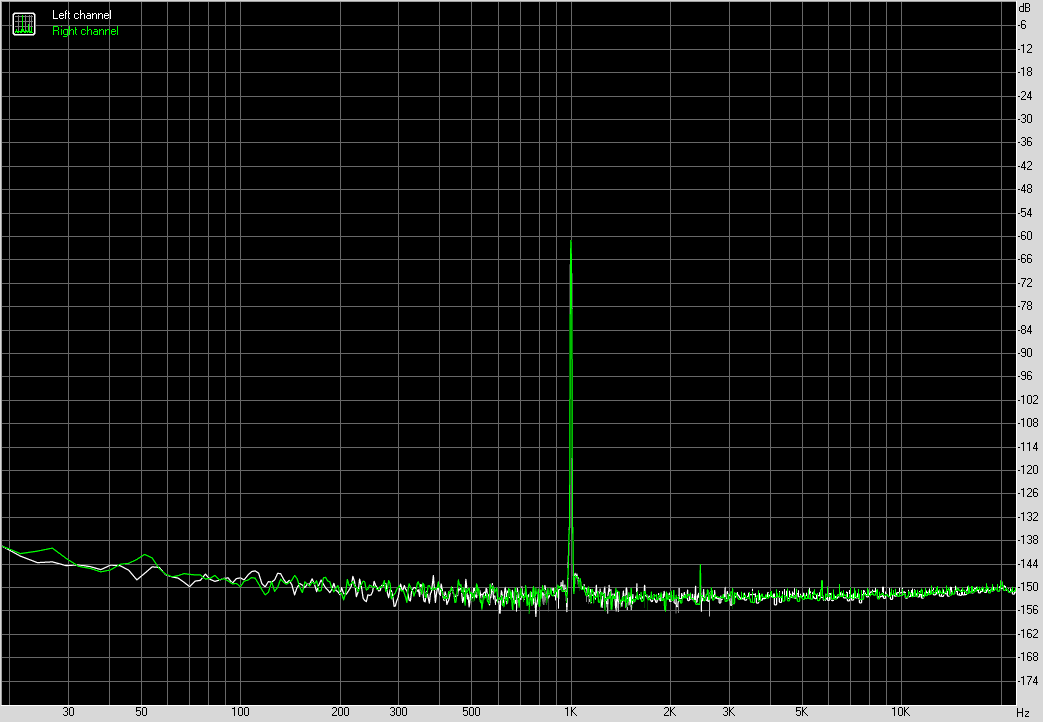

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+119.1
+118.9
Dynamic range (A-weighted), dB
+120.4
+120.2
DC offset, %
-0.00
-0.00

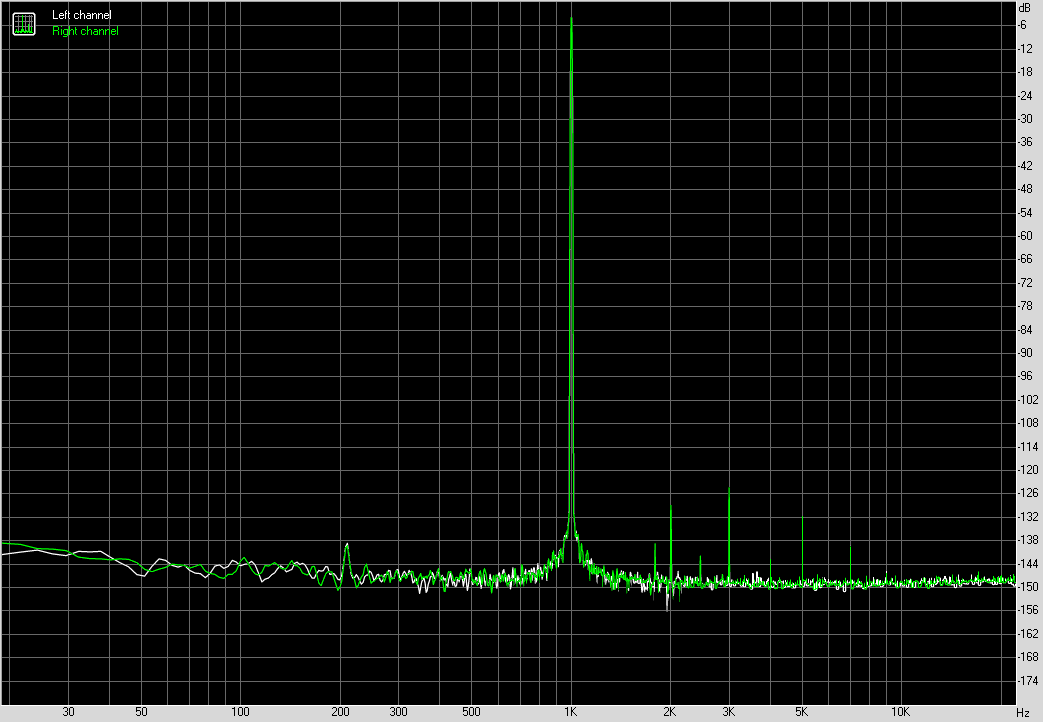

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00010
0.00012
THD + Noise, %
0.00036
0.00037
THD + Noise (A-weighted), %
0.00036
0.00037



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00044
0.00046
IMD + Noise (A-weighted), %
0.00032
0.00033



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-116
-118
Crosstalk at 1000 Hz, dB
-119
-118
Crosstalk at 10000 Hz, dB
-108
-107



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00039
0.00051
IMD + Noise at 10000 Hz,
0.00040
0.00046
IMD + Noise at 15000 Hz,
0.00052
0.00060
