RightMark Audio Analyzer test report

Testing device [ASIO] Lisk Audio ASIO
Sampling mode 32-bit, 44 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -1.3 dB / -1.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.03, -0.01
Excellent
Noise level, dB (A)
-119.8
Excellent
Dynamic range, dB (A)
119.8
Excellent
THD, %
0.00011
Excellent
THD + Noise, dB (A)
-92.4
Very good
IMD + Noise, %
0.00161
Excellent
Stereo crosstalk, dB
-92.5
Excellent
IMD at 10 kHz, %
0.00043
Excellent
General performance

Excellent

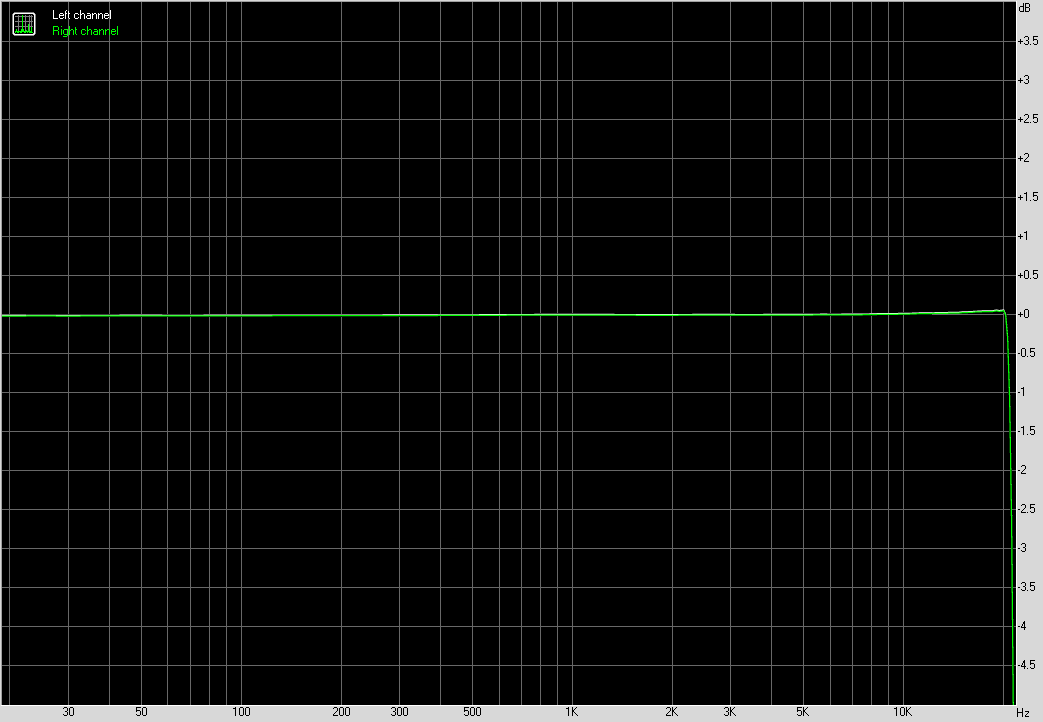

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.01, +0.06
-0.02, +0.05
From 40 Hz to 15 kHz, dB
-0.01, +0.03
-0.02, +0.02

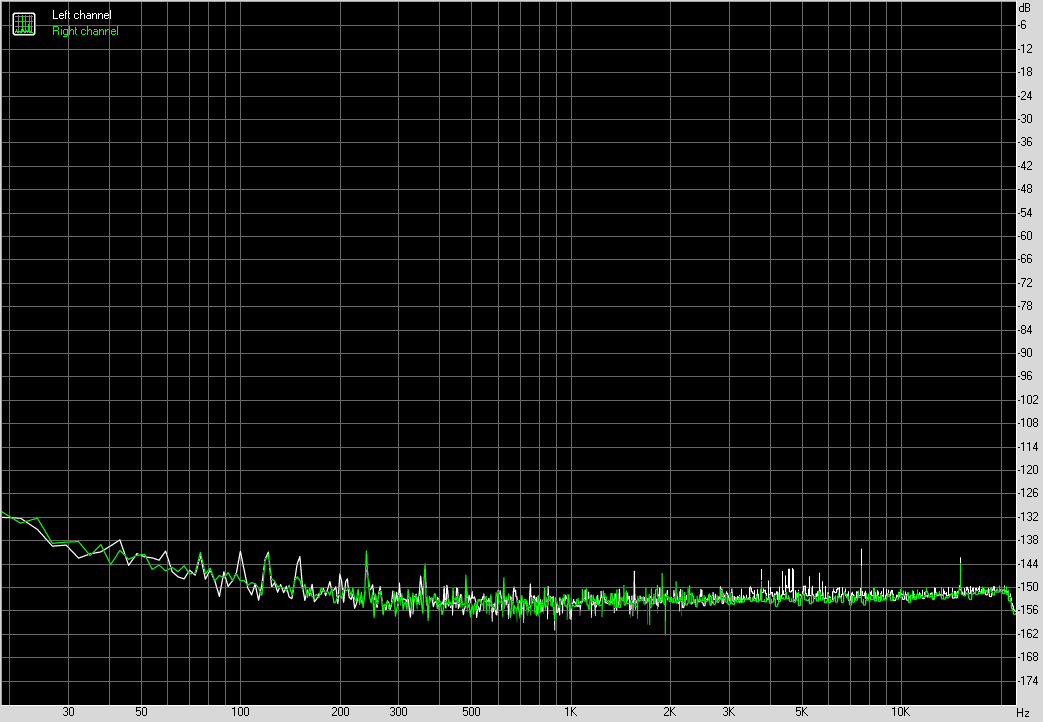

Noise level

Spectrum graph


Left
Right
RMS power, dB
-117.9
-118.8
RMS power (A-weighted), dB
-119.4
-120.2
Peak level, dB FS
-87.1
-86.8
DC offset, %
-0.0
-0.0

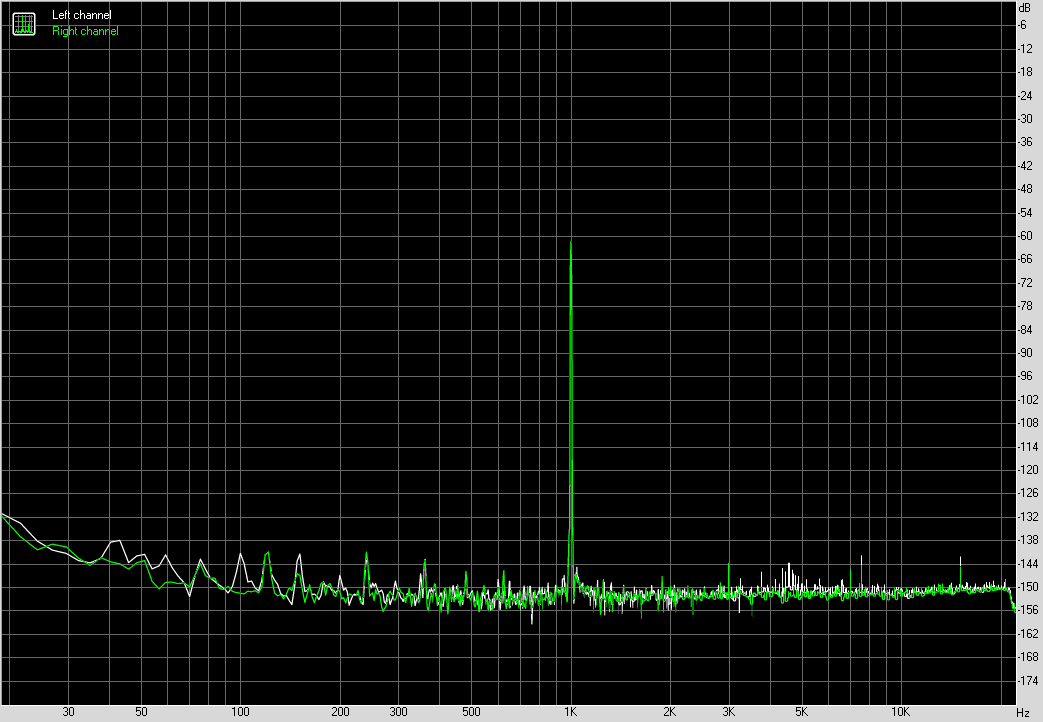

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+118.3
+118.9
Dynamic range (A-weighted), dB
+119.4
+120.1
DC offset, %
-0.00
-0.00

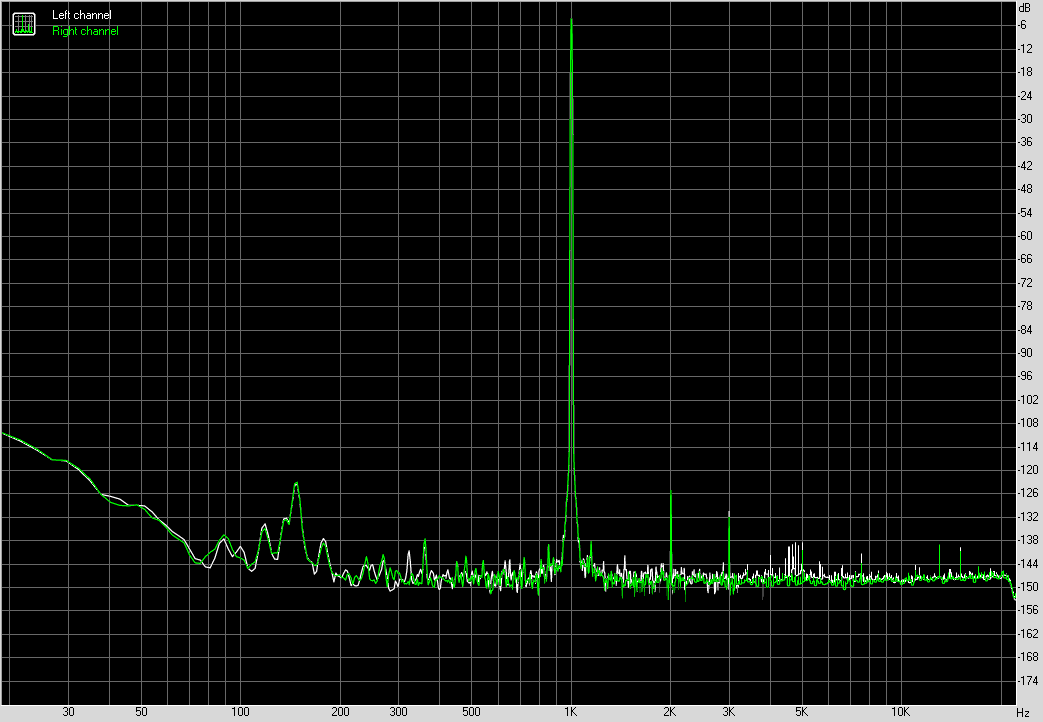

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00011
0.00011
THD + Noise, %
0.00221
0.00222
THD + Noise (A-weighted), %
0.00241
0.00241

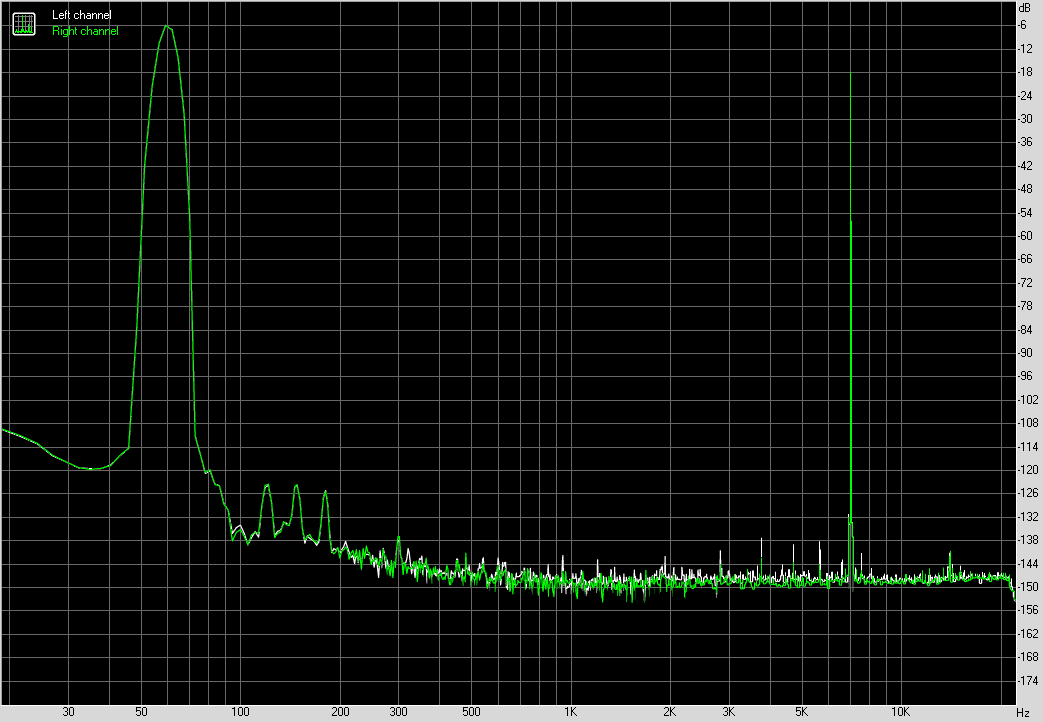

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00161
0.00160
IMD + Noise (A-weighted), %
0.00053
0.00050

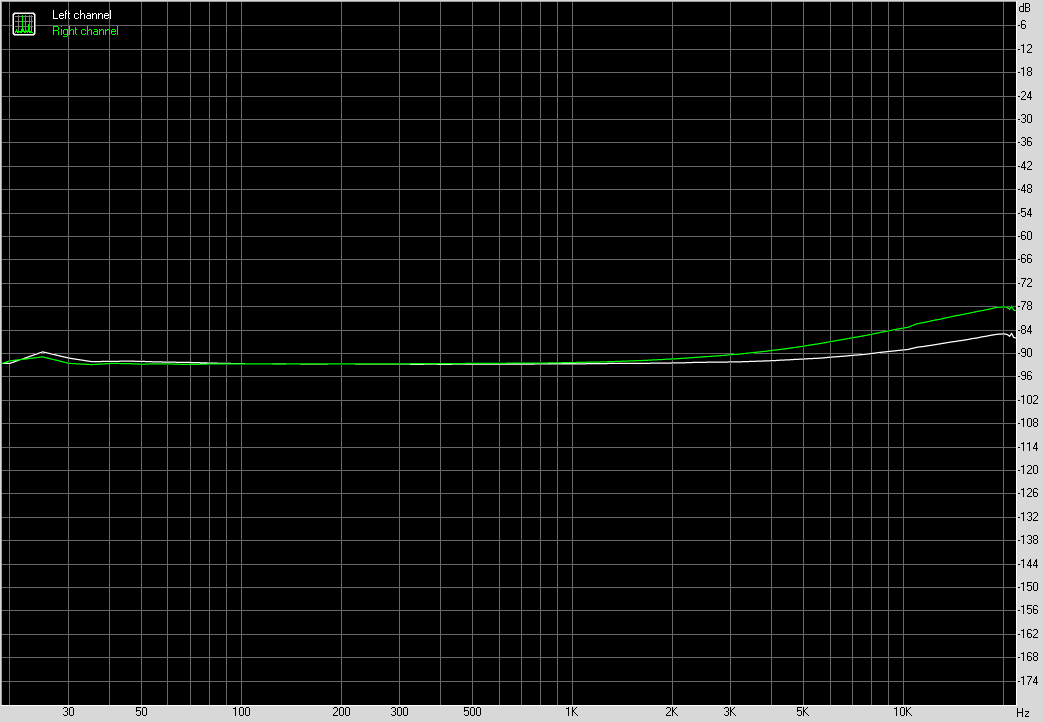

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-92
-92
Crosstalk at 1000 Hz, dB
-92
-91
Crosstalk at 10000 Hz, dB
-88
-82

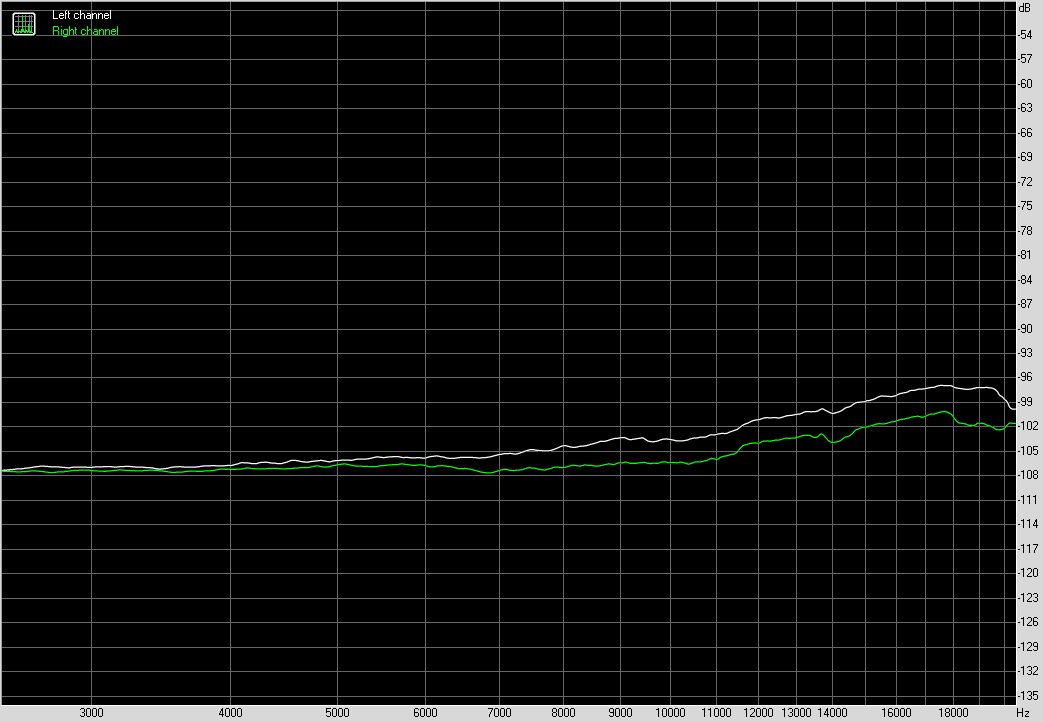

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00043
0.00043
IMD + Noise at 10000 Hz,
0.00043
0.00043
IMD + Noise at 15000 Hz,
0.00043
0.00043
