RightMark Audio Analyzer test report

Testing device Han Solo 2i2
Sampling mode 32-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -2.0 dB / -2.0 dB
Mono mode ON
Calibration singal, Hz 1000
Polarity inverted/inverted



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.04
Excellent
Noise level, dB (A)
-106.6
Excellent
Dynamic range, dB (A)
106.6
Excellent
THD, %
0.00351
Very good
THD + Noise, dB (A)
-83.8
Good
IMD + Noise, %
0.00688
Excellent
Stereo crosstalk, dB
-104.6
Excellent
IMD at 10 kHz, %
0.020
Good
General performance

Excellent

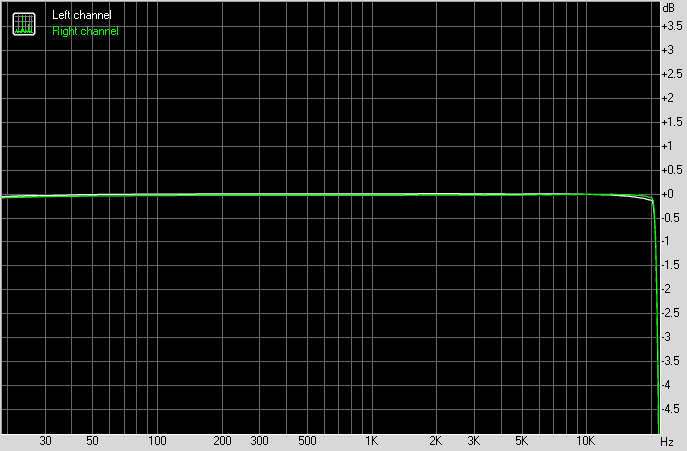

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.14, +0.01
-0.08, -0.00
From 40 Hz to 15 kHz, dB
-0.04, +0.01
-0.05, -0.00

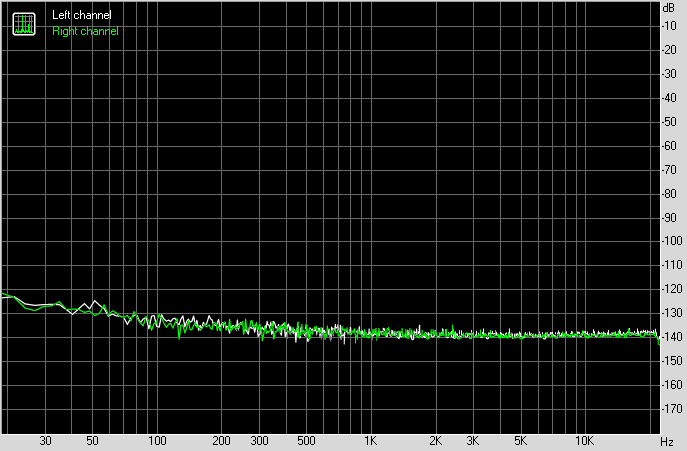

Noise level

Spectrum graph


Left
Right
RMS power, dB
-105.0
-105.5
RMS power (A-weighted), dB
-106.4
-106.7
Peak level, dB FS
-82.8
-83.9
DC offset, %
-0.0
-0.0

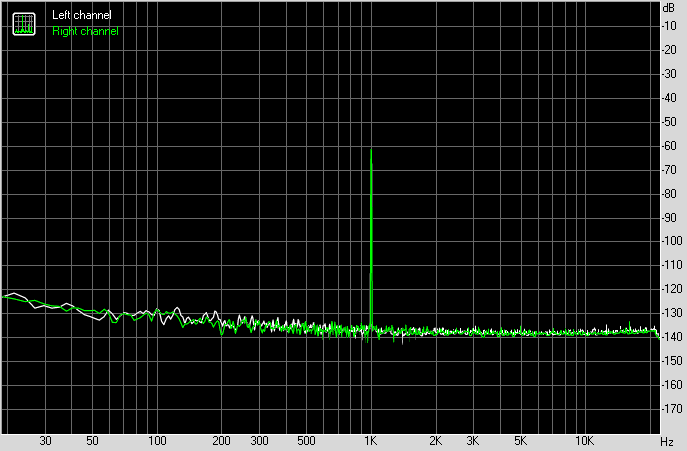

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+105.1
+105.4
Dynamic range (A-weighted), dB
+106.5
+106.6
DC offset, %
+0.00
-0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00367
0.00336
THD + Noise, %
0.00610
0.00601
THD + Noise (A-weighted), %
0.00652
0.00635

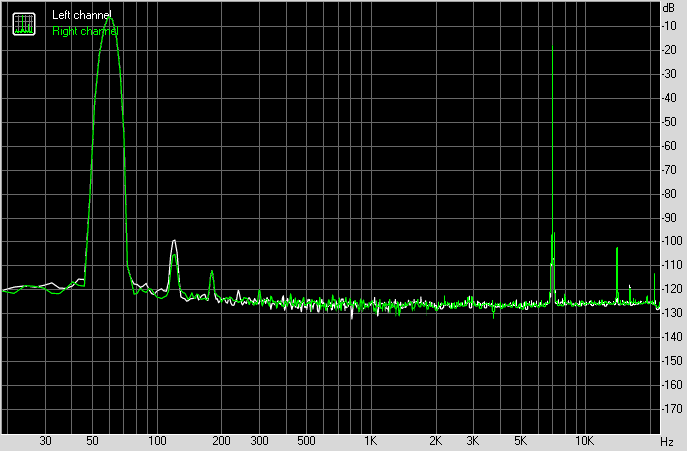

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00689
0.00686
IMD + Noise (A-weighted), %
0.00590
0.00607

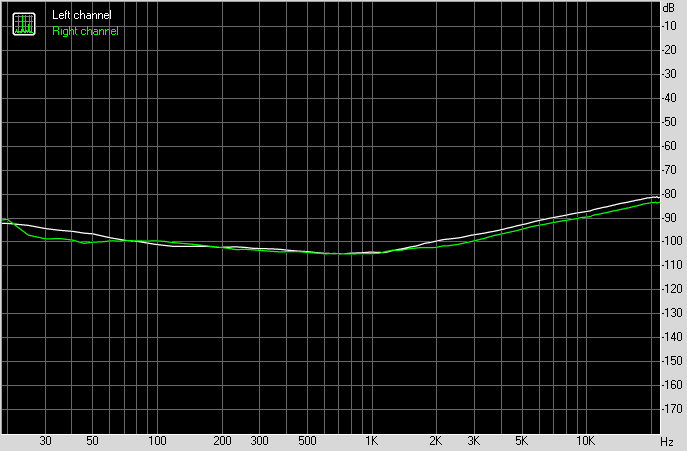

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-100
-99
Crosstalk at 1000 Hz, dB
-103
-104
Crosstalk at 10000 Hz, dB
-86
-89



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.01790
0.01861
IMD + Noise at 10000 Hz,
0.01620
0.01647
IMD + Noise at 15000 Hz,
0.02485
0.02619
